HIGH PERFORMANCE OIL FILTERATION

Oil Filter Relocation Kit

OUR KITS ARE NOT CAST, THEY ARE MACHINED AND WELDED.
Currently available in Metric Size 20MM X1.5 Threading. To be used only if your vehicle uses Trasko TMR-10S & 10SS or equivalent.  The Kit is ideal for Honda Civics,  Honda Accords and Mitsubishi Engines. Check out our cross-reference page to see which filter fits.

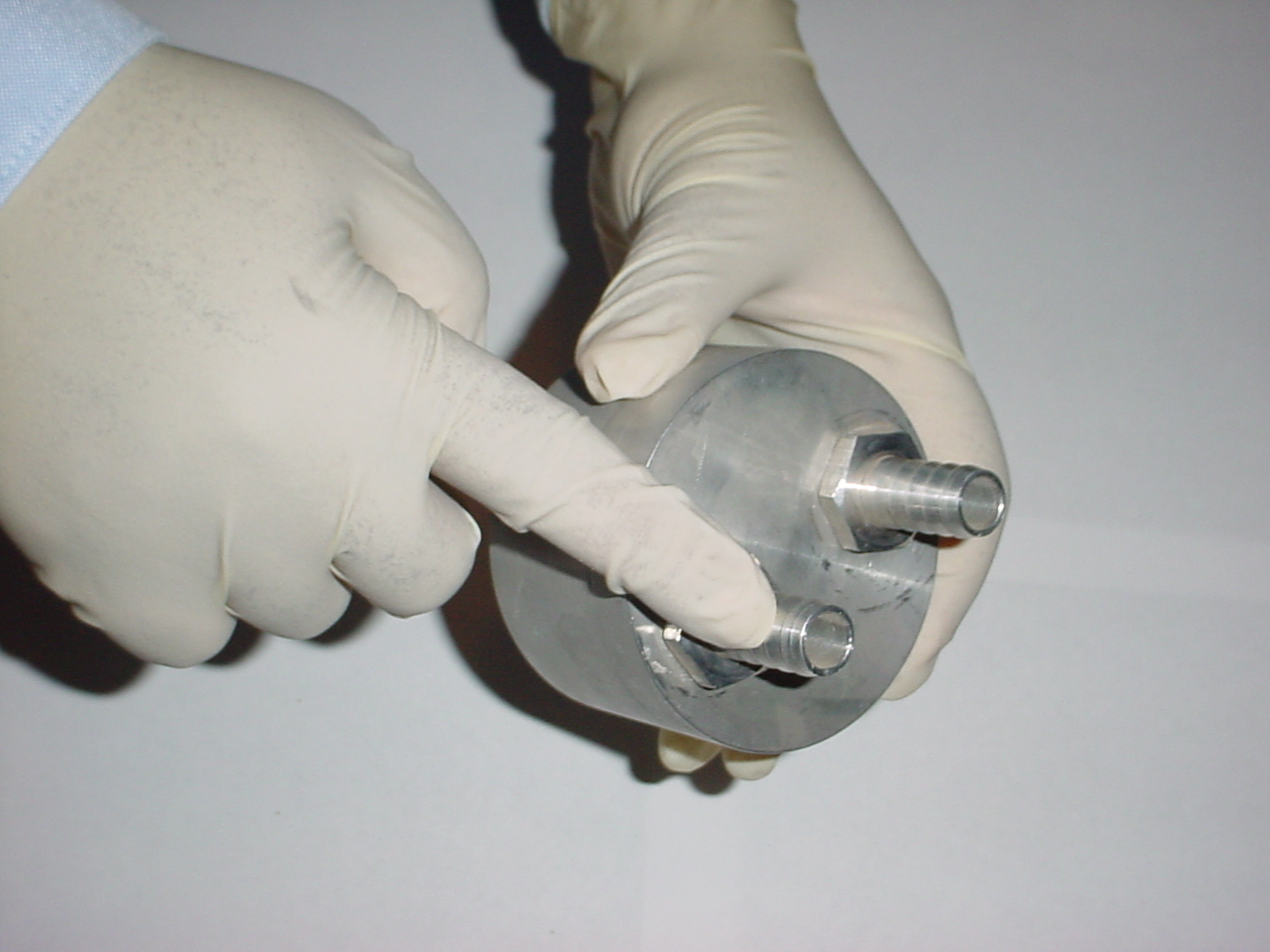

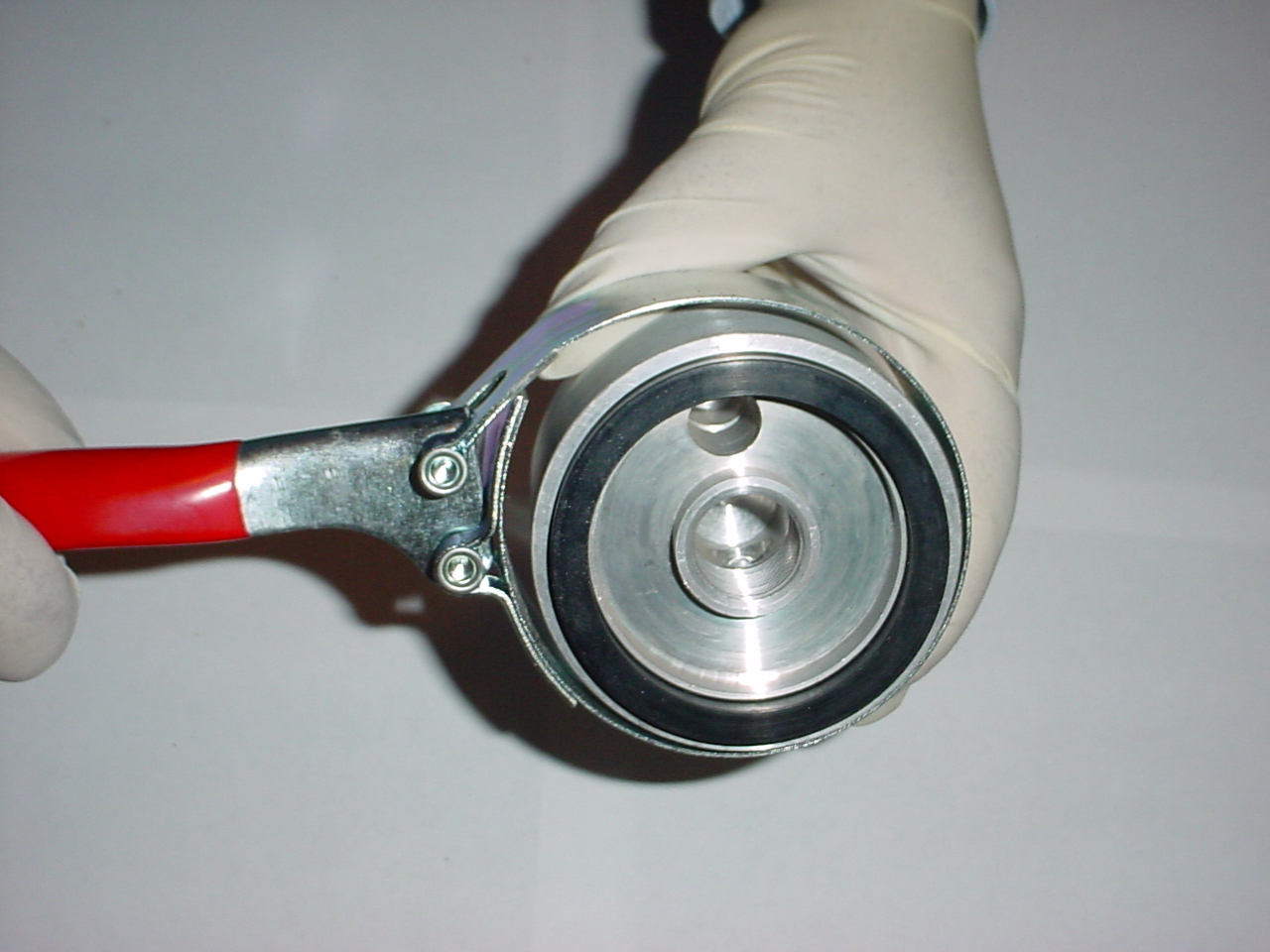

Relocation-Engine Mount: This part screws on to the engine where the filter goes on.  It COMES with A HEAVY DUTY hose for you to Cut in half and install to the mount and the remote. A thick neoprene gasket is provided that seals on to the engine.  The hose is 6 feet long-1/2" ID, has a max SAE hydraulic operating pressure of 250 psi and 800 Deg Fahrenheit temperature resistance.  It is tightened 3/4 turn just as the stock oil filter with a ring wrench.
(Caution: do not tighten with a wrench holding the hose nipple ends, use only a ring wrench to make that extra 3/4 turn)

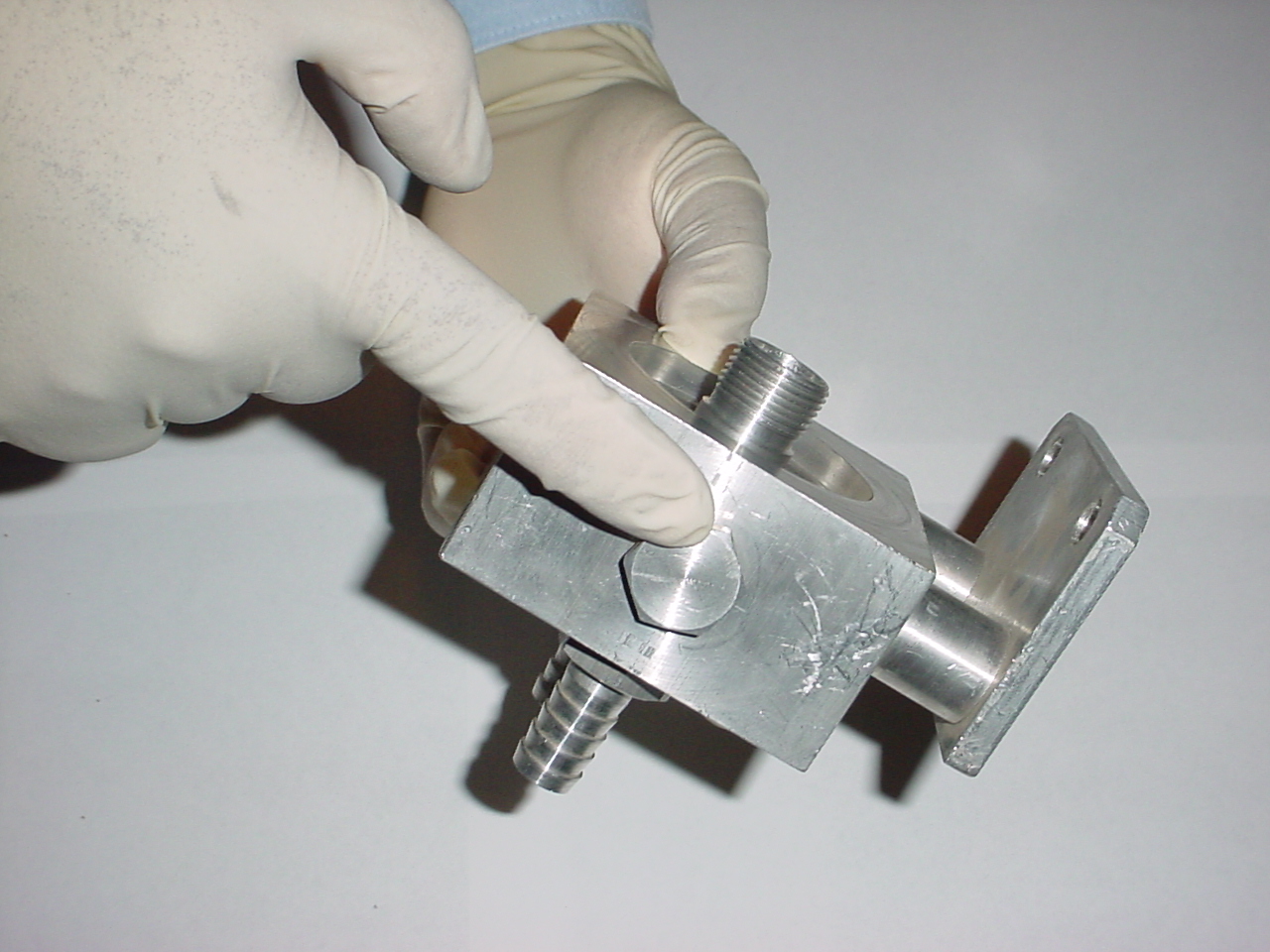

  Relocation-Remote Mount: This part is bolted on to the vehicles fire wall or any convenient spot.  Use a good judgment to find a spot within the vehicle.  Keep in mind when installing this part, it serves best to find the shortest distance possible and away from the engine.  There are two holes provided to insert 1/4" diameter metal screws with spring washers.  (Tighten until the spring washers look flat, do not over-tighten or you may rip the threads or the nut . An illustration is shown below , how this remote mount looks upon installation)

THE REMOTE MOUNT IS MACHINED

FROM ONE SINGLE ALUMINUM BLOCK, COMES WITH 1/2"-NPT NIPPLES INSTALLED AND HAS AN AUXILARY PORT FOR ATTACHING AN ADDITIONAL HOSE


OUR MOUNT PROVIDES LEAST RESTRICTIVE OIL FLOW  This Relocation Unit is Only to be used at a maximum operating pressure 250 PSI. It is only a single mount unit used for oil change convenience or better cooling.  Sells for $140 + S & H.  Click here to ORDER!
